EdgeSwitch 10XP

Optimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports that is ideal for WISP deployments. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™).

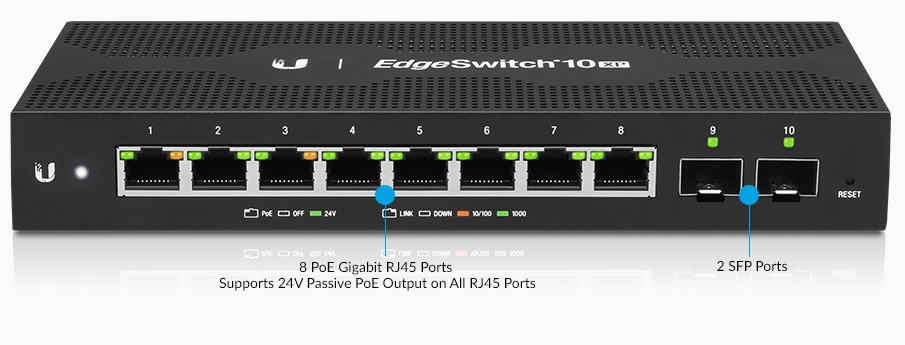

· (8) Gigabit RJ45 Ports
· (2) SFP Ports
· Supports 24V Passive PoE Output on All RJ45 Ports
· Powered by External AC/DC Adapter
· Wall- or Rack-Mountable

Liên hệ giá

Thông tin kỹ thuật
Tính năng nổi bật

Dimensions	207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight	500 g (1.10 lb)
Power Method	24VDC, 2.5A
Power Supply	24VDC, 2.5A Power Adapter (Included)
Maximum Power Consumption	8W
Certifications	CE, FCC, IC
Operating Temperature	-10 to 50° C (14 to 122° F)
Operating Humidity	5 to 95% Noncondensing
Total Non-Blocking Throughput	10 Gbps
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Management Interface	Ethernet In-Band
Rackmount	Yes
Shock & Vibration	ETSI300-019-1.4 Standard
LEDs Per Port	PoE, Speed/Link/Activity
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Supported Voltage Range	9 - 30VDC, 5A
Networking Interfaces	(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
PoE Interfaces	(8) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. Passive PoE Wattage per Port	15W
Passive PoE Voltage Range	24V
