NanoBeam 5AC Gen2

NanoBeam 5AC Gen2

Liên hệ giá tốt và giá sỉ

Model: NBE-5AC-Gen2

The sleek NanoBeam 5AC Gen2 design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

  • New Antenna
  • Improved Radio Design
  • Improved Surge Protection
  • Management WiFi Radio/U-Mobile App
  • AirOS v8.1 New UI

Hình ảnh sản phẩm NanoBeam 5AC Gen2

NanoBeam 5AC Gen2

NanoBeam 5AC Gen2

NanoBeam 5AC Gen2

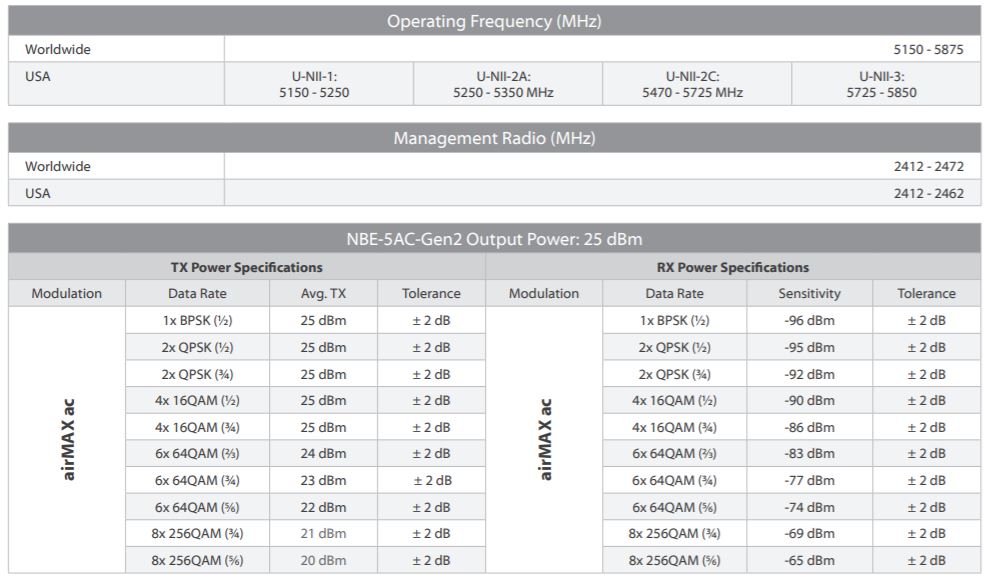

Thông số kỹ thuật NanoBeam 5AC Gen2

  • New Antenna
  • Improved Radio Design
  • Improved Surge Protection
  • Management WiFi Radio/U-Mobile App
  • AirOS v8.1 New UI

NanoBeam 5AC Gen2

Video Hướng Dẫn Cấu Hình UniFi xem tại đây.

Fanpage FPT – Thiết Bị Mạng: https://www.facebook.com/wifithietbifpt

Group hỗ trợ UniFi: https://www.facebook.com/groups/congdongUniFi/

Hỗ Trợ Kỹ Thuật: 028-7300-2222

Số máy lẻ (Ext): 89777

Dimensions

(Mount Included): 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

Weight

(Mount Included): 0.530 kg (1.17 lb)

Maximum Power Consumption

8.5W

Mounting

Pole-Mount (Kit Included), Wall-Mount

Operating Temperature

-40 to 80° C (-40 to 176° F)

Operating Humidity

5 to 95% Noncondensing

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

LEDs

Power, Ethernet, (4) Signal Strength

Memory

128 MB DDR2, 8 MB Flash

RoHS Compliance

Yes

Gain

19 dBi

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Networking Interfaces

(2) 10/100/1000 Ethernet Ports Wi-Fi for Management

Processor Specs

Atheros MIPS 74Kc, 720 MHz

Signal Strength LEDs

Software-Adjustable to Correspond to Custom RSSI Levels

Enclosure

Outdoor UV Stabilized Plastic

Wind Loading

45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability

200 km/h (125 mph)

Salt Fog Test

IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test

IEC 68-2-6

Temperature Shock Test

IEC 68-2-14

UV Test

IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
